Bookshelf Speakers and Subwoofer

·219 words

People will throw out all kinds of things because they don’t work anymore. For example, someone threw out a 10″ subwoofer, even though the speaker itself was intact. I had a pair of bookshelf speakers that were languishing in the basement, so I liberated them out of their enclosures, and built this box to hold them all. The box is mostly MDF, and the sides are plywood, because I ran out of MDF…all scraps from other projects. I got a bluetooth amp from Amazon which pumps out 50W per channel, plus 50W for the subwoofer. You can even tune the subwoofer frequency to reduce vibrations. I really like how this one came out and use it daily in my home office. I don’t think I have raised the volume more than 1/4 of the way given how loud it can get.

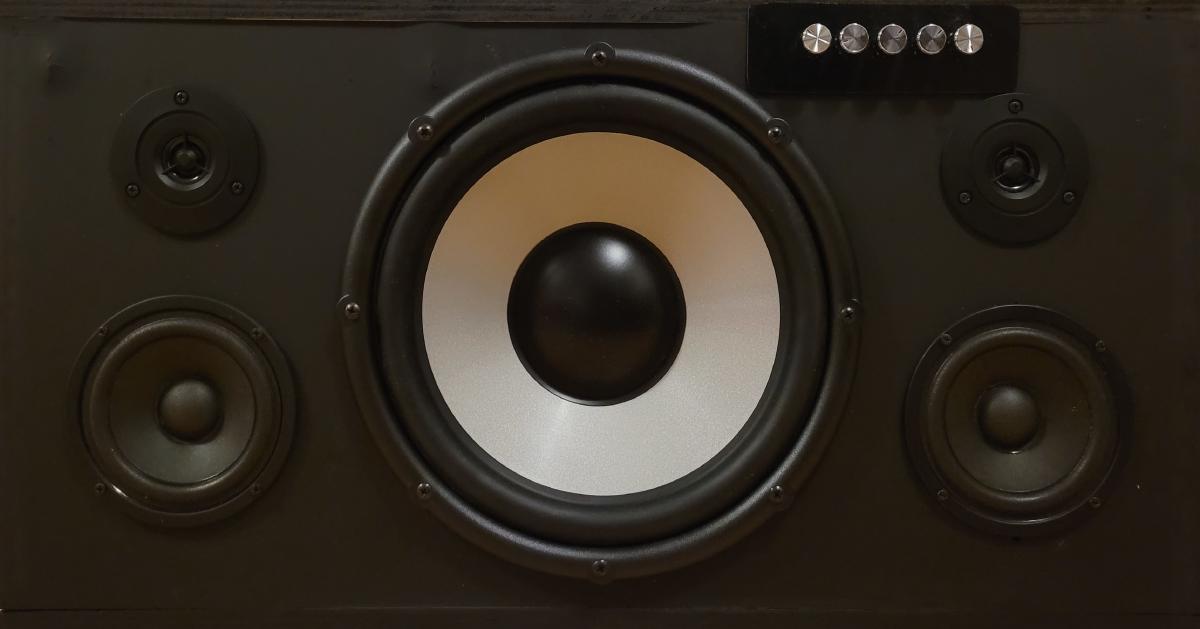

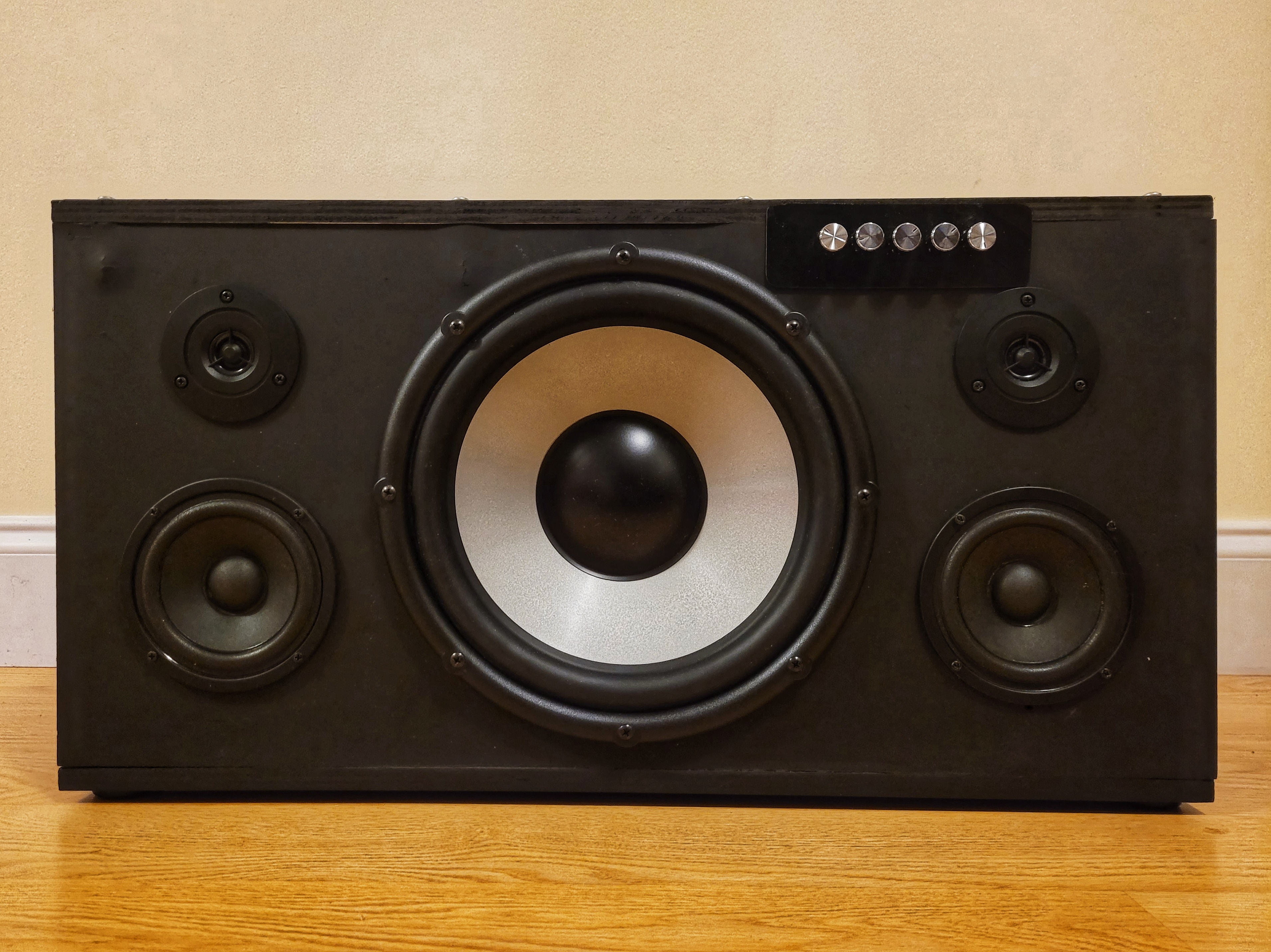

The finished product

The finished product

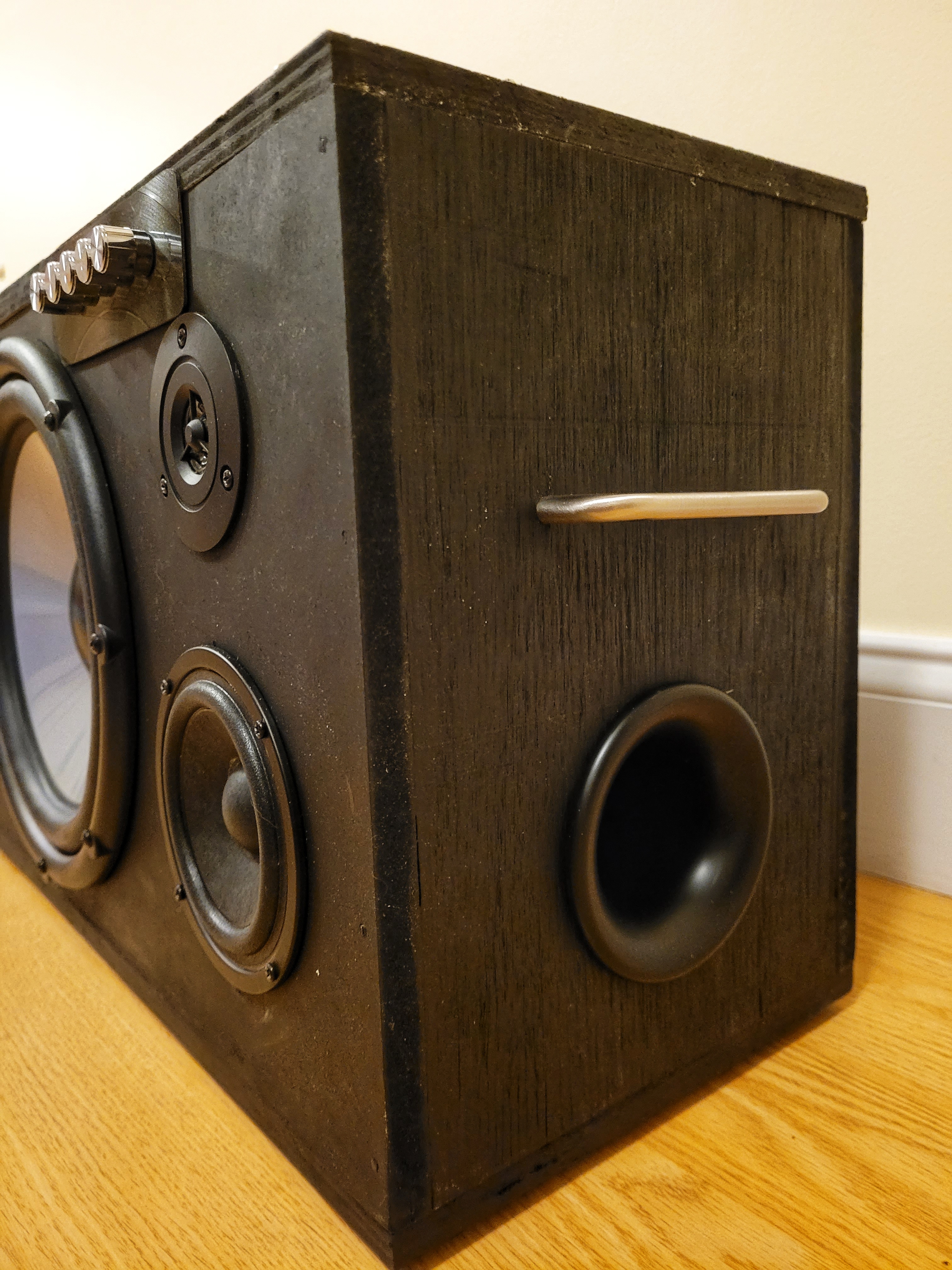

I reused the port from the subwoofer, which had been discarded

I reused the port from the subwoofer, which had been discarded

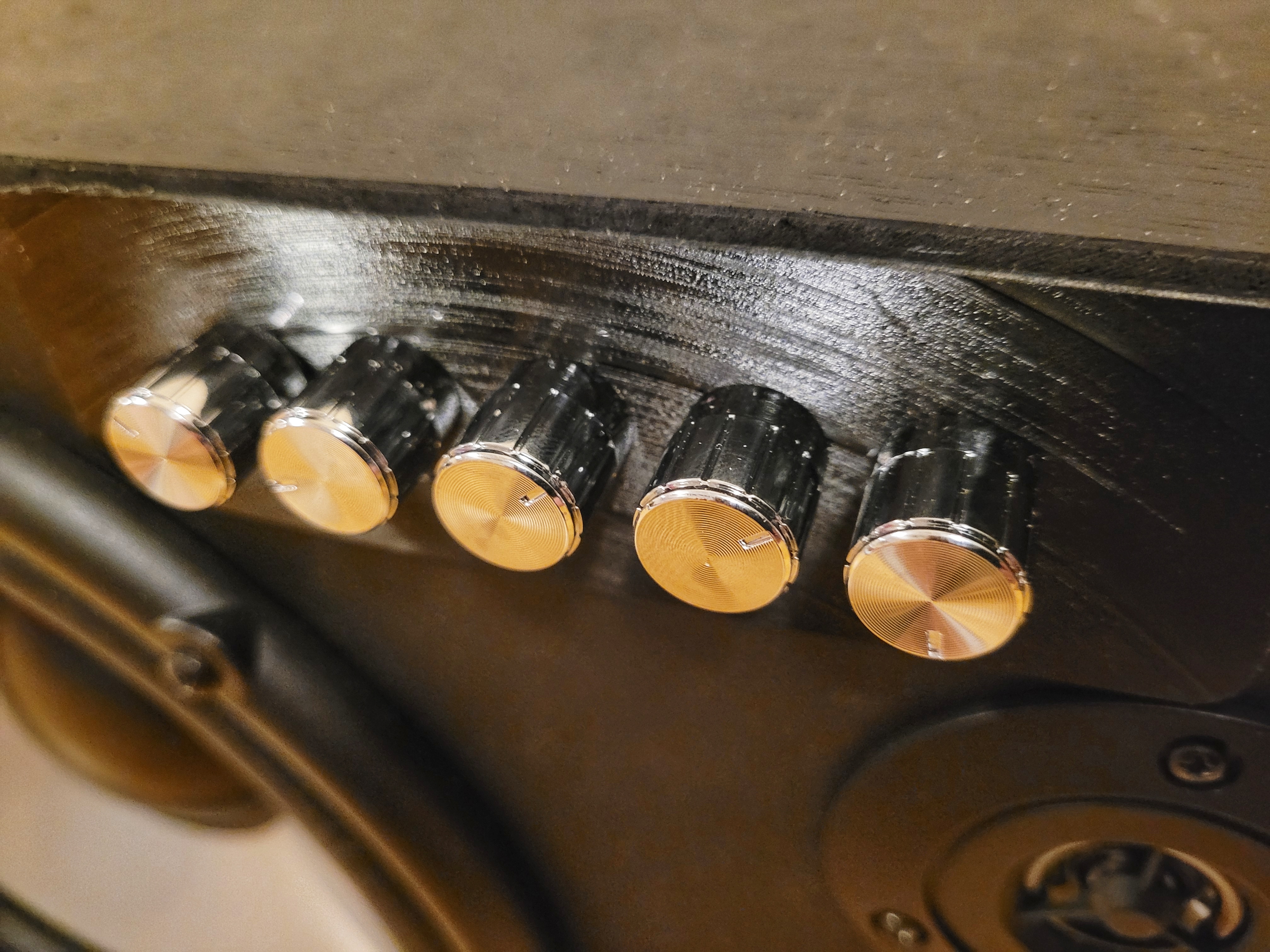

The plate is made from an old record. I find vinyl to be a very versatile material, plus it gives it a retro vibe.

The plate is made from an old record. I find vinyl to be a very versatile material, plus it gives it a retro vibe.

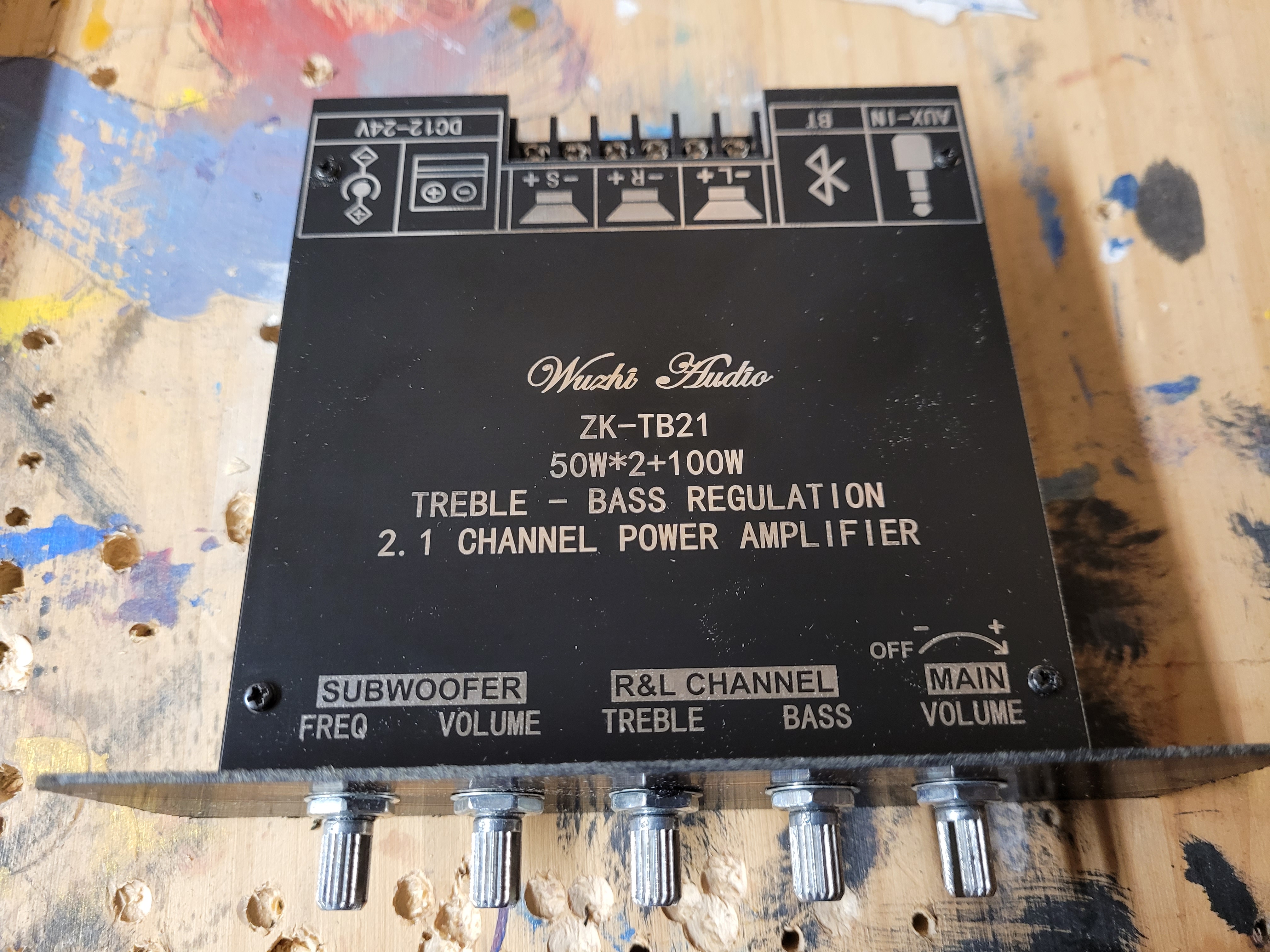

This thing can really pump out some sound!

This thing can really pump out some sound!

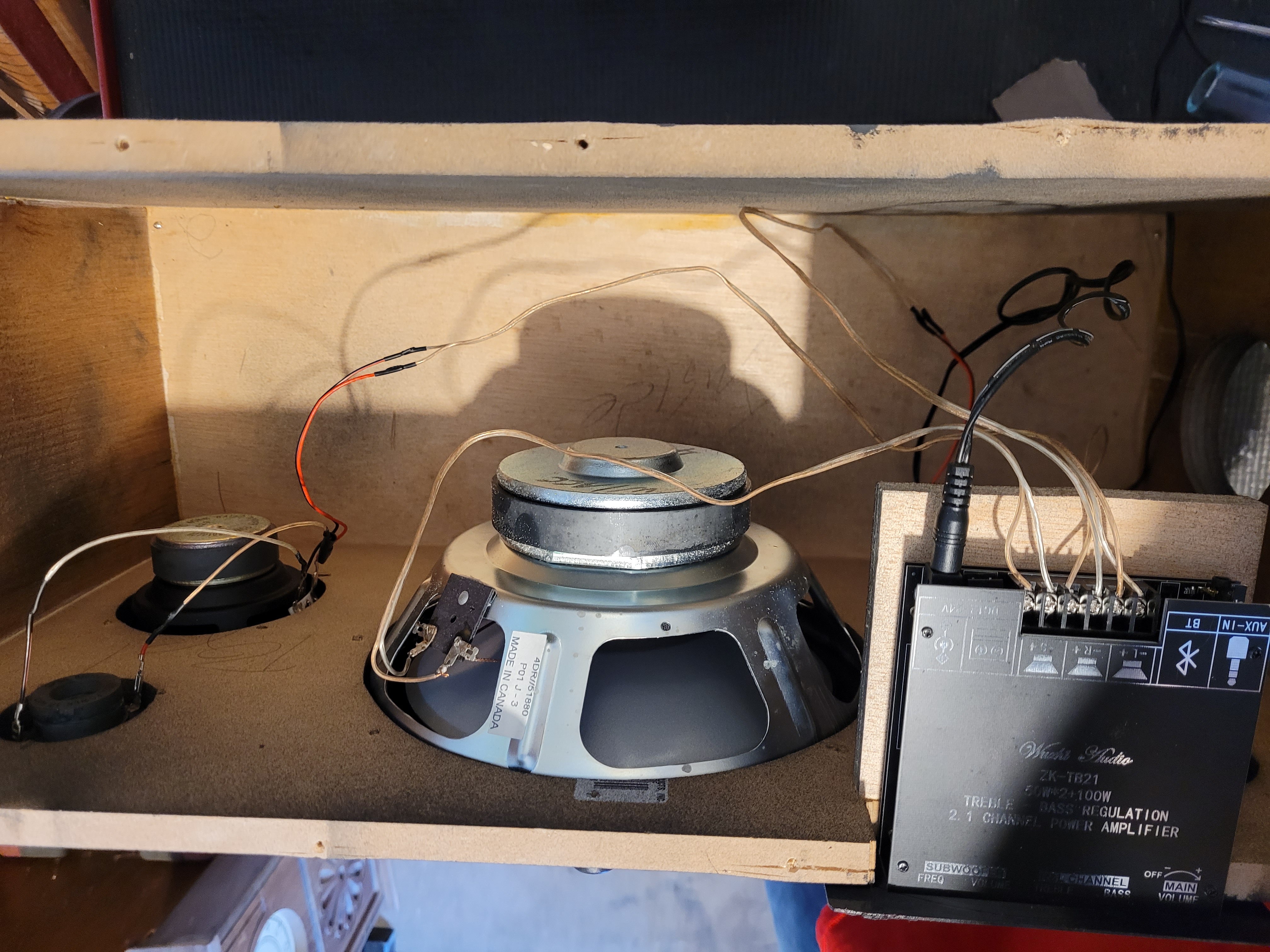

Final assembly

Final assembly

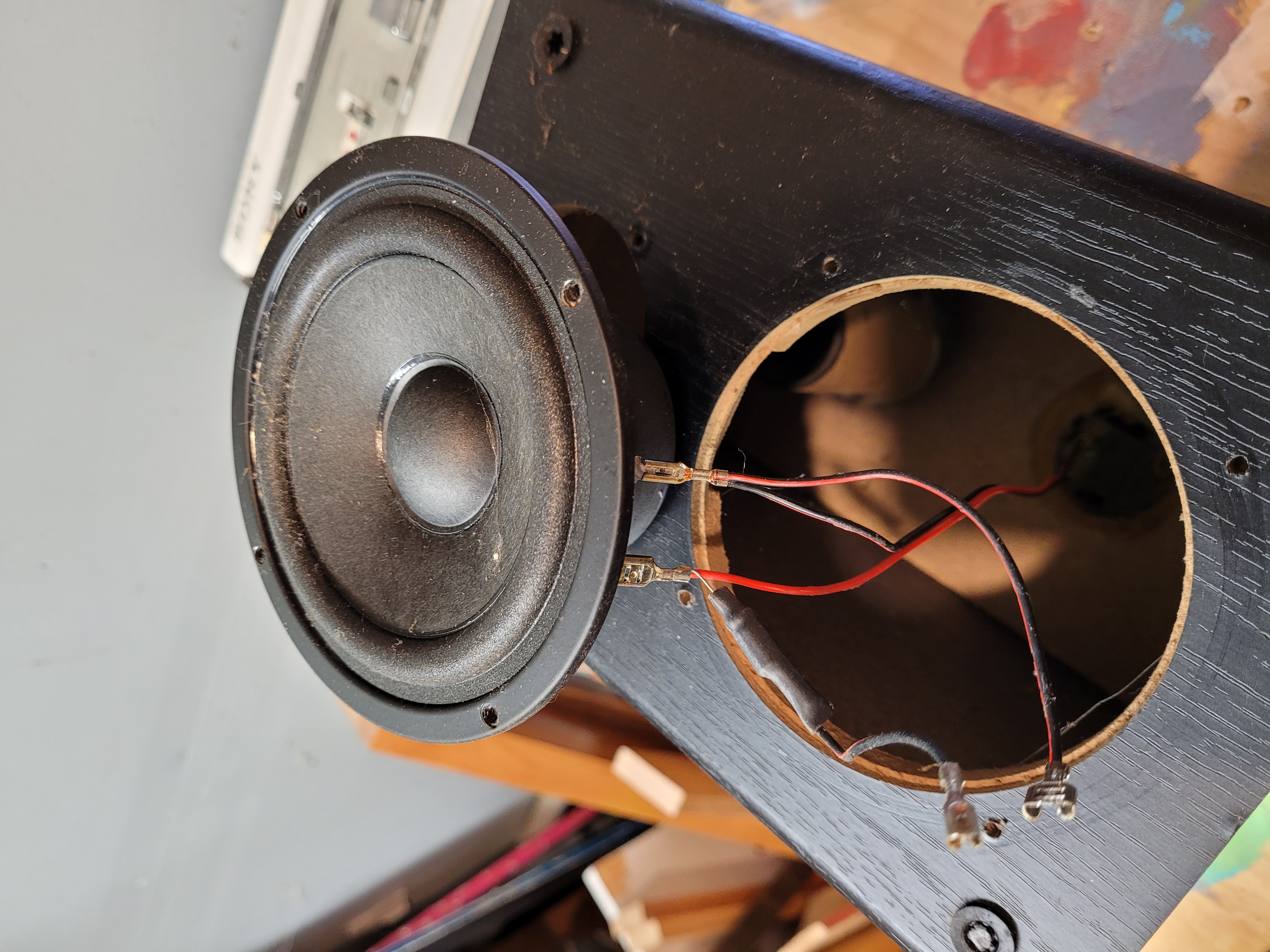

Removing the speakers from their enclosures

Removing the speakers from their enclosures

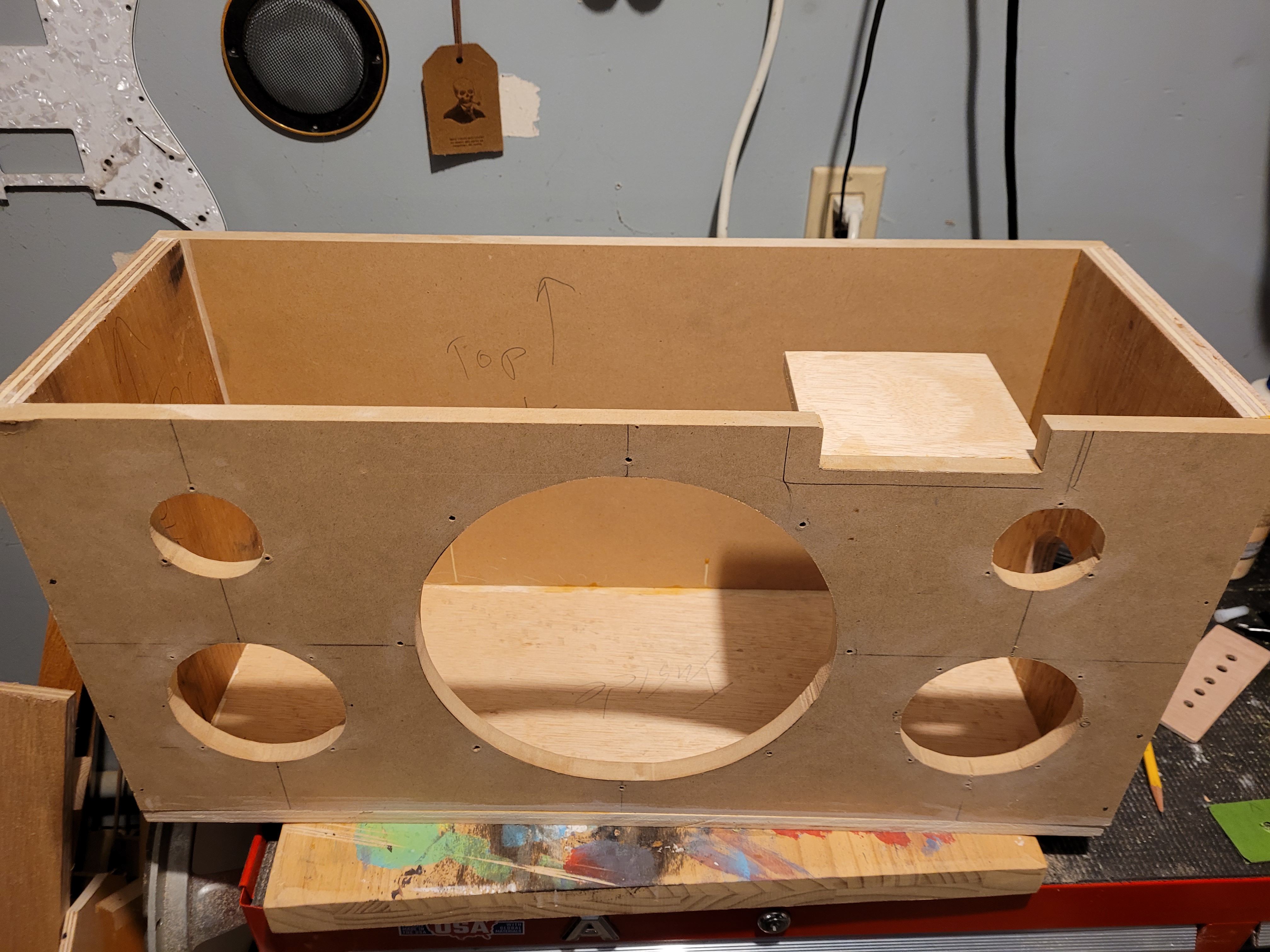

I made a small shelf for the amp to sit in. Once the lid is in screwed on, it holds the amp in place.

I made a small shelf for the amp to sit in. Once the lid is in screwed on, it holds the amp in place.
